Thrie Beam Guardrail Manufacturer | Galvanized Highway Safety Barrier

Item	Specification
Product Name	Thrie Beam Guardrail
Guardrail Type	3-Wave Highway Guardrail
Material	High-Strength Steel
Material Grade	Q235 / Q345 / S355JR / ASTM A36 / Customized
Brand	YUHUI
Place of Origin	Shandong, China
Surface Treatment	Hot Dip Galvanized / Powder Coated
Beam Length	4320 / 4130 / 3810 mm / Customized
Beam Width	506 mm / Customized
Thickness	3.0 / 3.5 / 4.0 / 4.5 mm / Customized
Zinc Coating	100–1100 g/m² / Customized
Color	Silver / Green / Customized
Wave Type	3-Wave (Thrie Beam)
Post Type	H Post / C Post / Sigma Post / Customized
Hole Spacing	According to Drawing / Customized
Accessories	Posts / Spacers / Bolts / Terminal Sections
Installation	Bolted Assembly
Customization	Size / Thickness / Coating / Accessories
Application	Highway / Expressway / Bridge / Urban Road / Mountain Road
Feature	High Impact Resistance / Corrosion Resistance / Easy Installation
Standards	AASHTO / EN / ASTM / Project Requirements
Packaging	Standard Export Packaging

High-Strength Steel Construction

The performance of a highway guardrail system depends on the quality of its steel, structural design and manufacturing accuracy.

Yuhui manufactures Thrie Beam Guardrails using high-quality steel materials. Material grades can be selected according to project specifications and applicable requirements.

During production, forming, punching, dimensions, hole positions and surface quality are carefully controlled to ensure consistent production and convenient assembly with posts, spacers and other guardrail components.

Hot Dip Galvanized Thrie Beam Guardrail

Highway guardrails are continuously exposed to rain, humidity, sunlight and changing outdoor conditions. Effective corrosion protection is therefore important for long-term service.

Our Hot Dip Galvanized Thrie Beam Guardrail provides a durable zinc coating over the steel surface, helping protect the guardrail against corrosion in outdoor environments.

Zinc coating requirements can be customized according to customer specifications and project standards.

For projects requiring a different appearance or additional surface protection, powder coated guardrails are also available in green and other customized colors.

Customized Thrie Beam Guardrail Specifications

Different highway and bridge projects have different technical requirements. Yuhui supports customized production based on customer drawings, tender specifications and project requirements.

Customers can customize:

• Beam length and width
• Steel thickness
• Material grade
• Zinc coating
• Powder coating color
• Hole spacing
• Guardrail posts
• Spacers and blocks
• Terminal sections
• Bolts and accessories

Send us your project drawing or required specifications, and our team can evaluate the requirements and provide a suitable production solution.

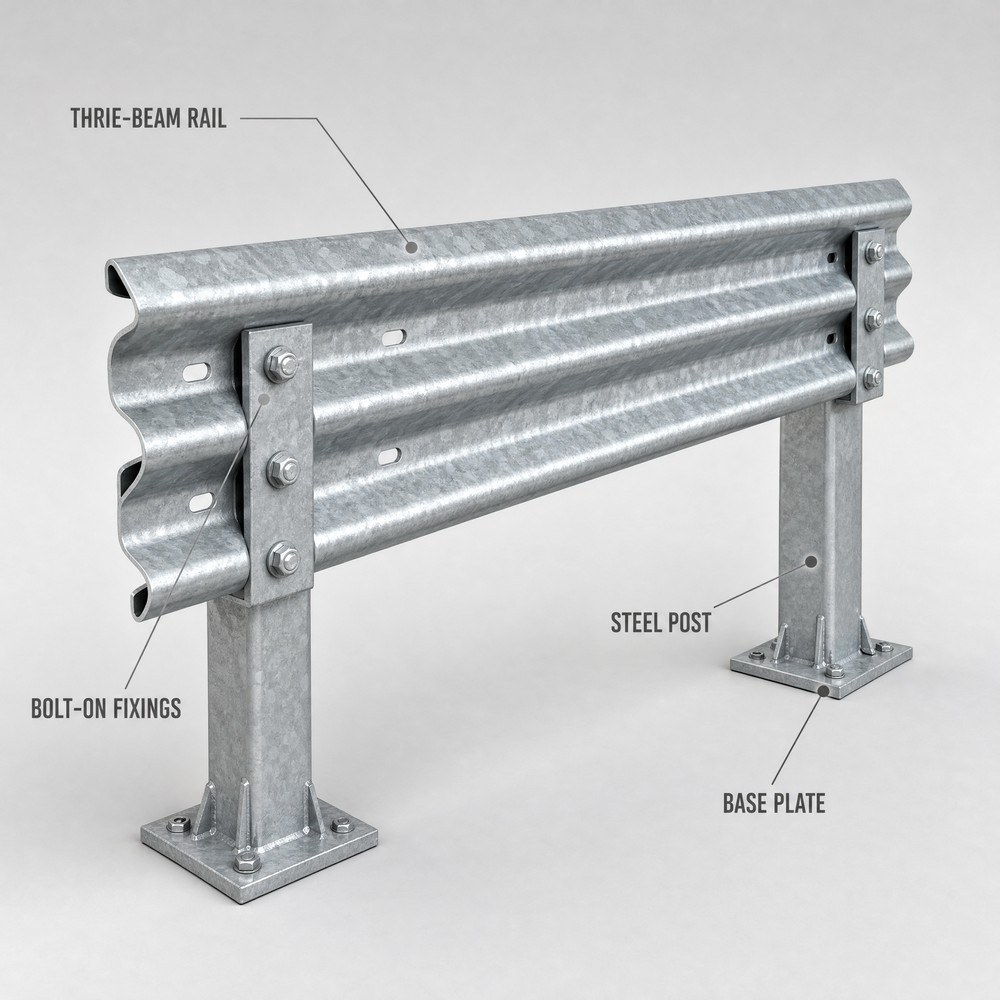

Complete Highway Guardrail System

Yuhui can supply more than individual Thrie Beam Guardrail panels. We provide matching components for complete highway barrier systems.

Available components include Thrie Beam Guardrails, W Beam Guardrails, steel posts, spacers, blocks, bolts and nuts, terminal sections and other highway guardrail accessories.

Supplying the main beams and matching components together helps customers simplify procurement and coordinate specifications for highway infrastructure projects.

Applications of Thrie Beam Guardrail

Thrie beam highway guardrails can be used for a variety of transportation and road safety applications, including:

Highways & Expressways
Suitable for roadside and median barrier systems on major road projects.

Bridges & Bridge Approaches
Can be configured for bridge-related protection according to engineering specifications.

Mountain Roads
Suitable for curves, slopes and other road sections requiring roadside barrier systems.

Urban Roads
Can be used in municipal transportation and road infrastructure projects.

Heavy Traffic Areas
Three-wave guardrail systems can be specified for projects requiring robust roadside barrier configurations.

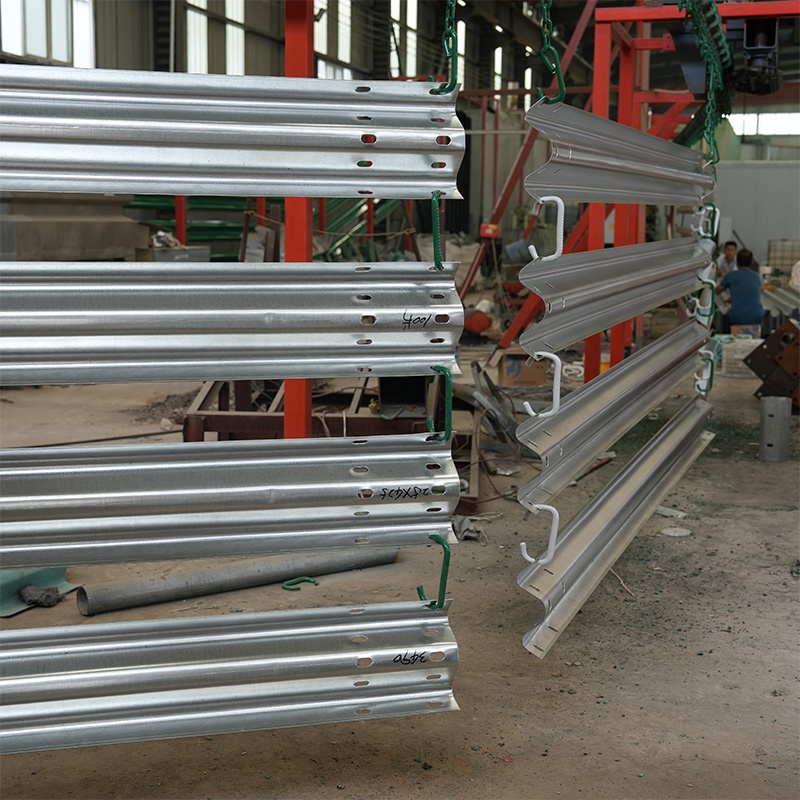

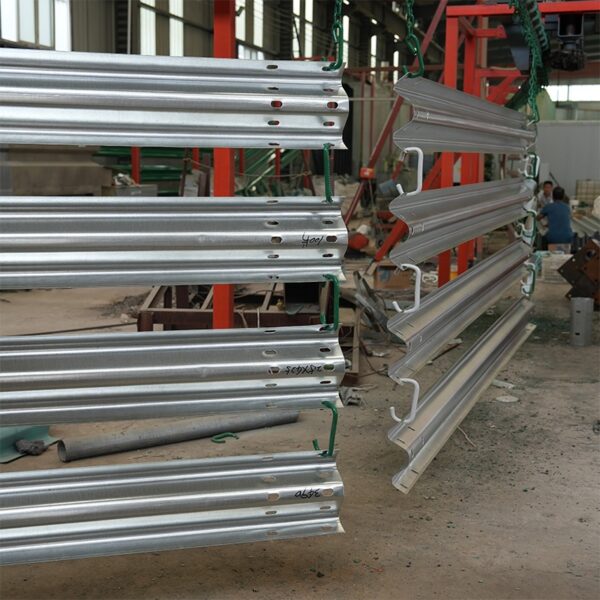

Precision Manufacturing & Quality Control

Quality control is carried out throughout our guardrail manufacturing process.

Raw materials, dimensions, forming quality, punching accuracy, hole positions, surface treatment and finished products are inspected according to production and project requirements.

Before packing, finished Thrie Beam Guardrails are checked to ensure that the supplied components meet the confirmed order specifications.

Why Choose Yuhui

Yuhui combines manufacturing capacity, customized production and quality control to support highway guardrail projects worldwide.

20+ Automated Production Lines
Supports stable production for standard products and customized project orders.

200,000+ Tons Annual Production Capacity
Provides manufacturing capacity for bulk orders and infrastructure projects.

46,660㎡ Manufacturing Facility
Integrated manufacturing, inspection, packing and delivery capabilities.

Customized Manufacturing
Dimensions, thickness, material, coating and accessories can be produced according to project requirements.

Strict Quality Control
Inspection is carried out throughout key manufacturing processes.

20+ Countries Exported
Experience supplying products to customers in international markets.

CE & ISO
Relevant certification and quality management support our manufacturing and export operations.

Factory Direct Supply
Direct communication with the manufacturer helps customers coordinate technical requirements, production and delivery.

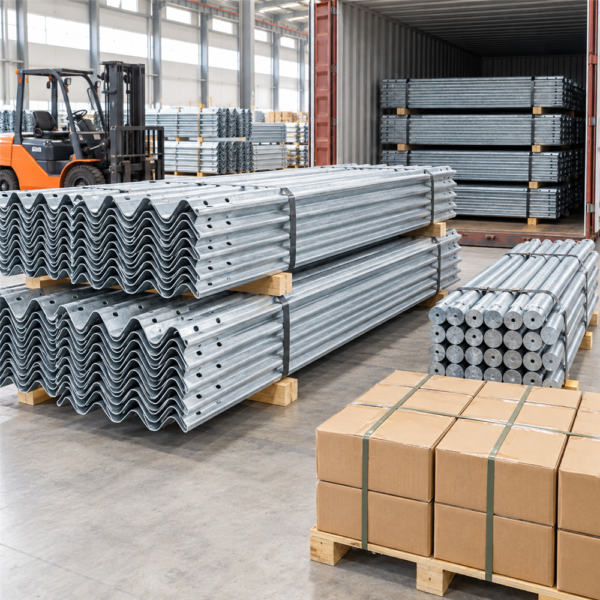

Packing and International Delivery

Thrie beam panels, posts and accessories are packed according to product dimensions, quantity and transportation requirements.

Yuhui supports customers from production scheduling and quality inspection through packing, container loading and export delivery.

For large highway projects, production and shipment schedules can be coordinated according to order quantities and project requirements.

FAQ – Thrie Beam Guardrail

What is a Thrie Beam Guardrail?
A Thrie Beam Guardrail is a steel highway safety barrier featuring a three-wave profile. It is used in highway, bridge and other road safety barrier systems.

What is the difference between W Beam and Thrie Beam Guardrail?
W Beam Guardrail has a two-wave profile, while Thrie Beam Guardrail uses a three-wave profile with a larger vertical section. The appropriate system depends on the engineering design and road safety requirements of the project.

Can you customize the Thrie Beam Guardrail?
Yes. Beam dimensions, thickness, material grade, zinc coating, color, hole spacing, posts and accessories can be customized.

Do you supply galvanized Thrie Beam Guardrails?
Yes. Hot dip galvanized guardrails are available, and coating requirements can be produced according to confirmed project specifications.

Can you provide posts and accessories together?
Yes. We can supply posts, spacers, bolts, terminal sections and other matching guardrail components.

Can you manufacture according to our drawings?
Yes. Customers can send drawings, technical specifications or tender requirements for evaluation.

Get a Thrie Beam Guardrail Quote

Looking for a reliable Thrie Beam Guardrail manufacturer for your highway, bridge or road safety project?

Send Yuhui your guardrail dimensions, thickness, material grade, surface treatment, quantity, project drawings and destination country. Our team will provide a customized solution and quotation based on your project requirements.

Yuhui Steel — Highway Guardrail Manufacturer in Shandong, China
